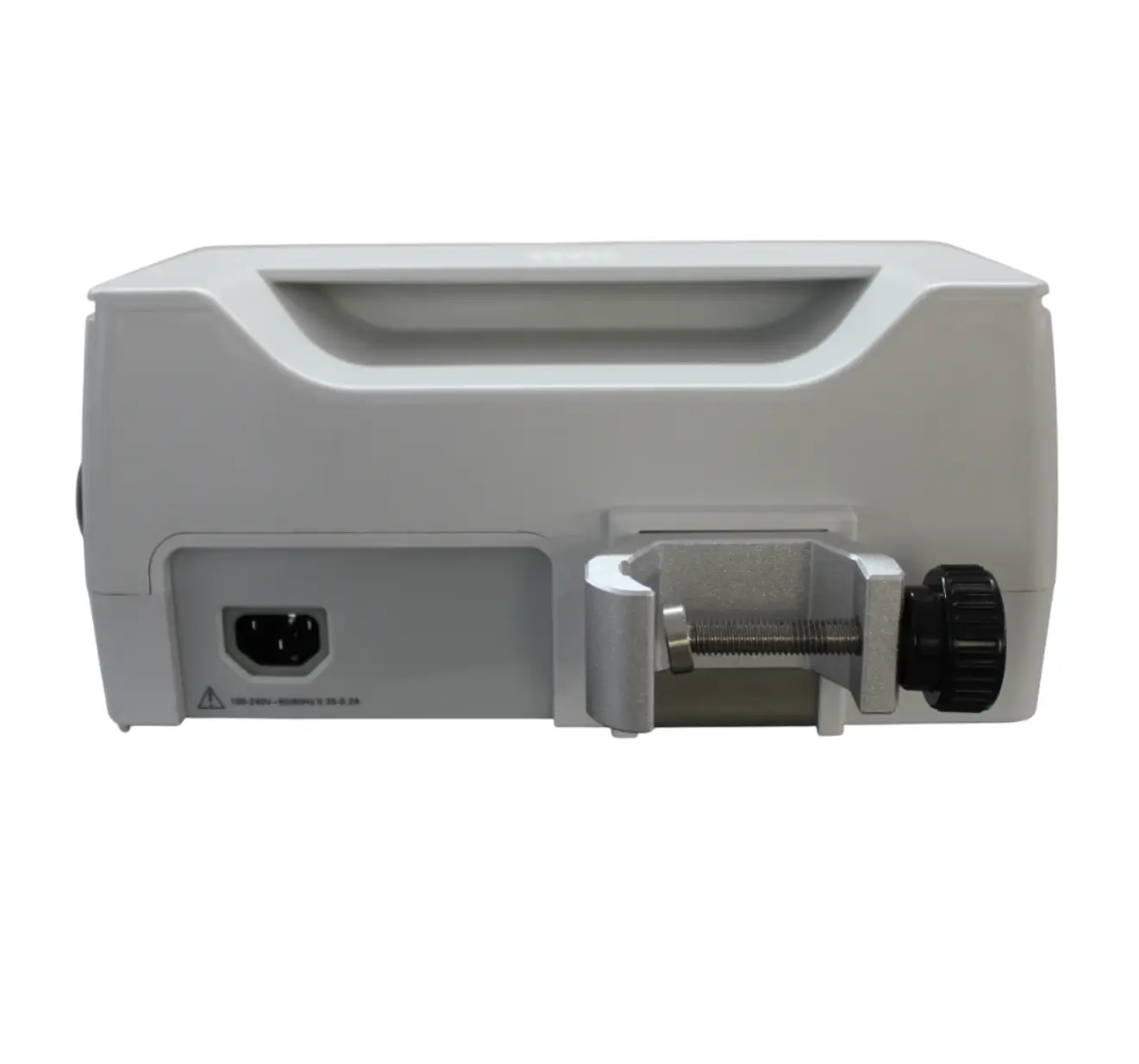

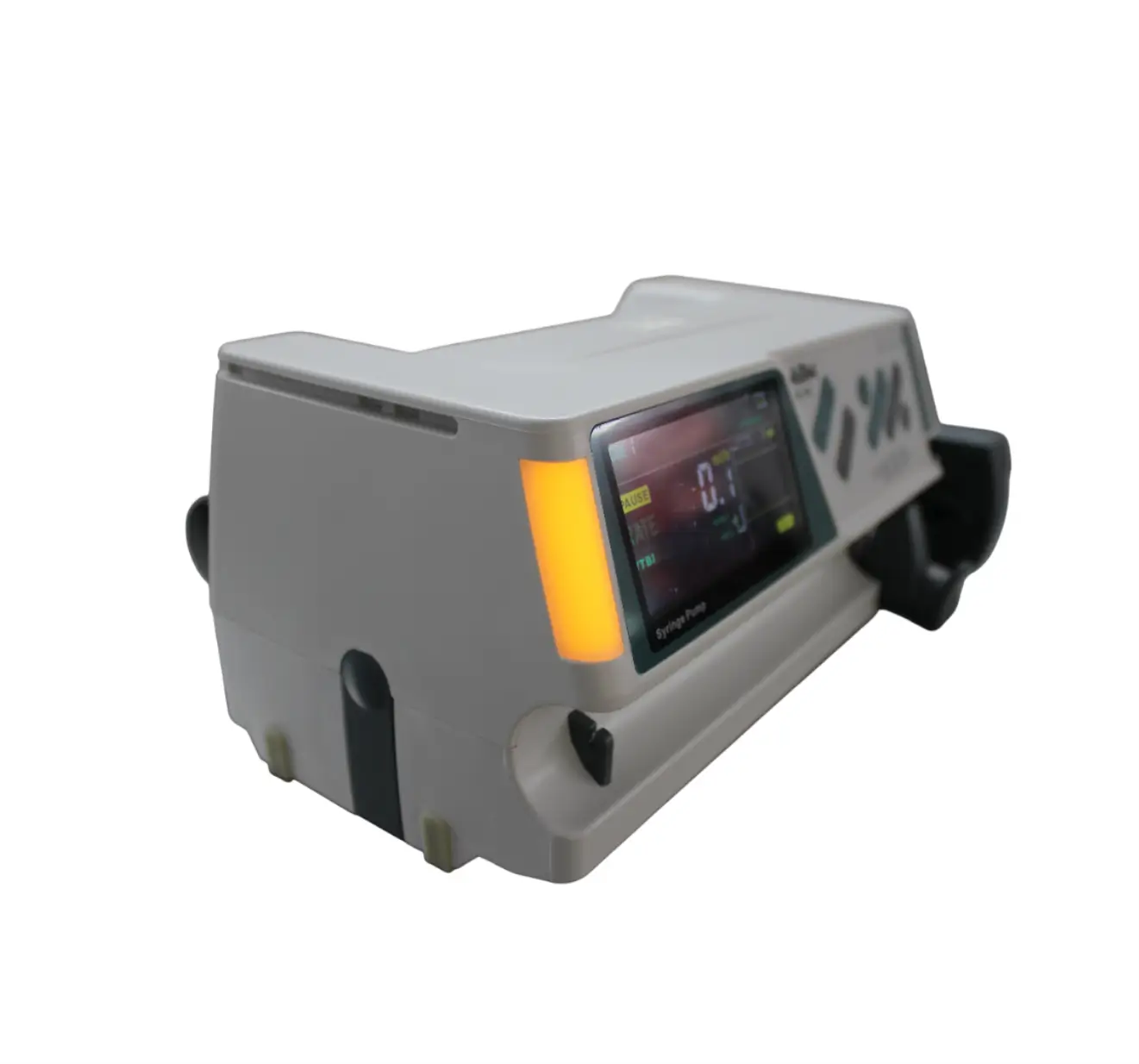

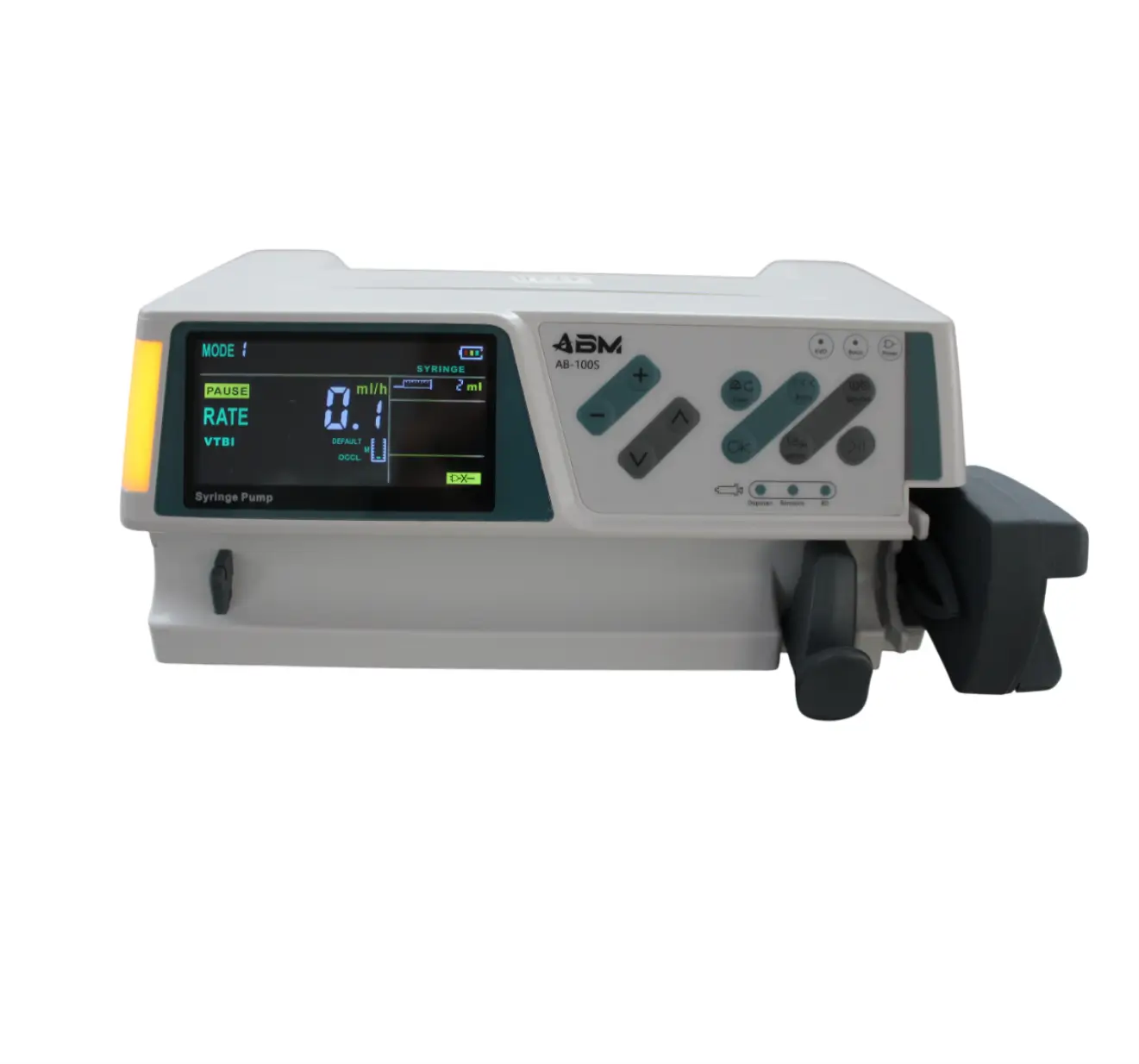

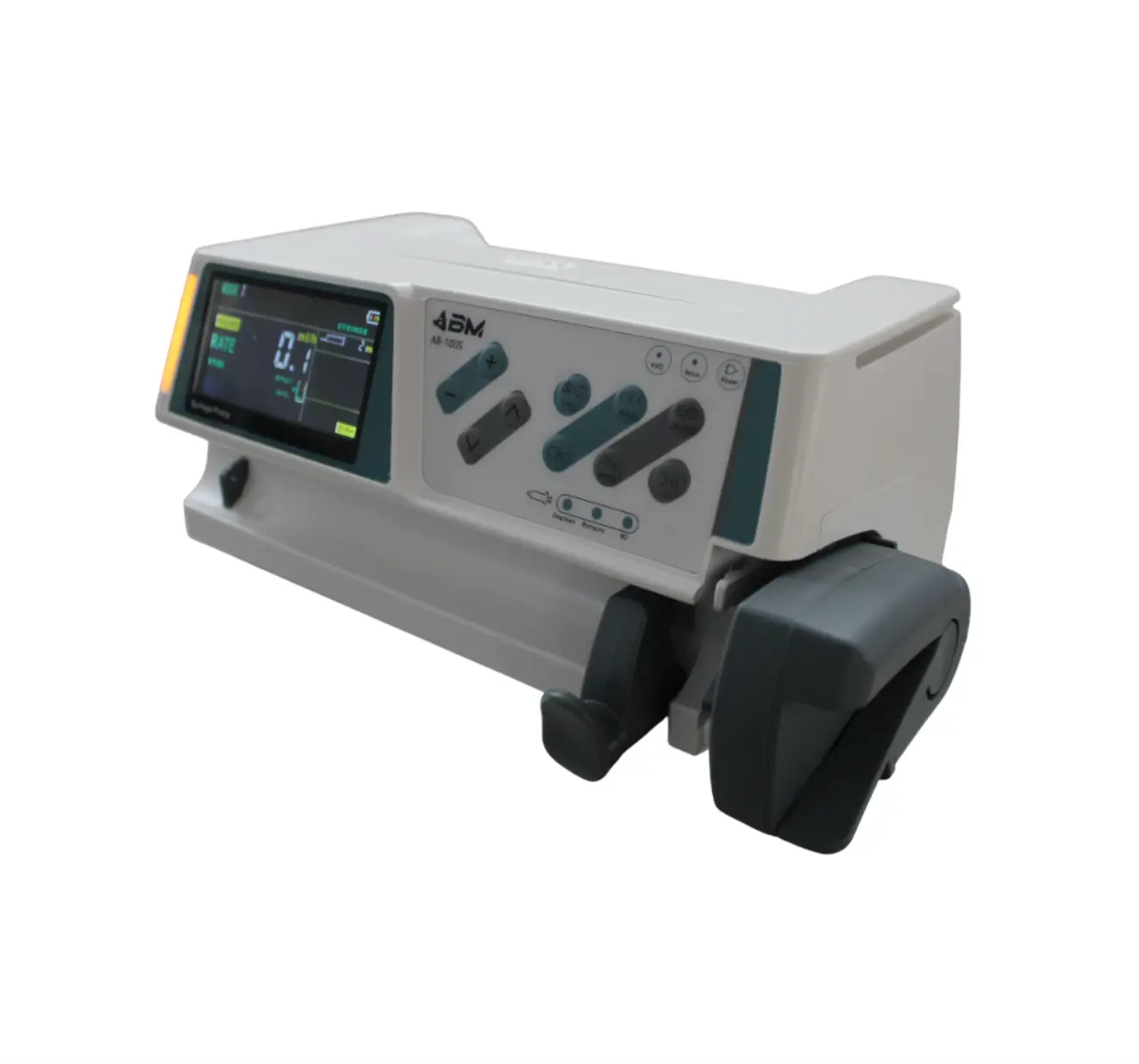

ABM Syringe Pump - AB100S

Kaarya

ABM Syringe Pump - AB100S

Rs. 0.00
Rs. 0.00
Sold out
Tax included. Shipping calculated at checkout.
28 people are viewing this right now

Availability: Low stock: 5 left

Our Advantages

  1. 1. GST Invoice
  2. 2. Brand New Products
  3. 3. Easy Replacements
  4. 4. Authorized Distributor
  5. 5. Best Price Guaranteed
  6. 6. Multiple Payment Options

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The AB-100S Syringe Pump is an open system designed for precise and controlled medication delivery. It is fully compatible with all standard syringes (ranging from 5ml to 60ml) and includes pre-calibrated profiles for major brands like Dispovan, Romsons, and BD. Equipped with a 3.5-inch color LED display, automatic syringe size detection, and three flexible work modes, it offers critical care environments a practical and reliable infusion solution. Safety features such as an anti-bolus system, multi-level occlusion alarms, and power-loss memory ensure steady operation across demanding hospital shifts.

Technical Specifications

Parameter

Specification

Applicable Syringes

5ml, 10ml, 20ml, 30ml, 50ml, 60ml (any standard brand)

Built-in Syringe Brands

Pre-calibrated for Dispovan, Romsons, BD

Infusion Accuracy

± 2% (with correct calibration)

Work Modes

Rate Mode, Time Mode, Dose Mode

Flow Rate Range

• 50ml/60ml syringe: 0.1 ml/h – 2000.0 ml/h

• 30ml syringe: 0.1 ml/h – 1200.0 ml/h

• 20ml syringe: 0.1 ml/h – 800.0 ml/h

• 10ml syringe: 0.1 ml/h – 400.0 ml/h

• 5ml syringe: 0.1 ml/h – 100.0 ml/h

Time Mode Settings

Volume: 0.1 – 999.9 ml (0.1 ml steps); Time: 00:01 – 99:59 min

Dose Mode Settings

Volume: 0.1 – 999 ml; Drug Mass: 0.1 – 999 mg; Dose: 0.01 – 9999 µg/kg/min; Weight: 0.1 – 300 kg

Total Volume Range

0.1 – 8999 ml (0.1 ml steps)

Bolus Volume Range

1.0 – 50.0 ml (0.1 ml steps)

Occlusion Levels

3 selectable levels of Occlusion Pressure Alarm

Internal Battery

Rechargeable Li-Battery, 6–8 hours of continuous operation

Protection Class

Class I, Type CF, IP44

Dimensions / Net Weight

240 mm × 150 mm × 117 mm / 2.0 kg



Key Features

  • Open & Adaptive System: Seamlessly accepts multiple standard sizes of syringes while automatically identifying the loaded syringe specifications.
  • 3.5-Inch Color LED Display: Provides clear, large-font visibility of active parameters, flow rates, and totals.
  • Anti-Bolus Safety Mechanism: Significantly reduces the accidental bolus volume delivered to a patient immediately following the sudden release of a line occlusion.
  • Freely Stackable Design: Units can be easily stacked on top of one another to save space and provide multi-pump solution arrays at the bedside.

Product Highlights

  • Smart Alarms: Features comprehensive, synchronized audible and visual alerts for Loose Syringe, Operation Error, Occlusion, Empty, Near Empty, Low/Empty Battery, Infusion Complete, and Standby.
  • Small Volume Precision: Maintains excellent, reliable delivery rates even during microscopic or low-volume fluid configurations.
  • Power Loss Memory: Automatically recovers previous settings and parameters if power is suddenly lost or disconnected.

Use Cases

  • ICU & Critical Care Units: For continuous, highly steady infusions of essential drugs like sedatives, insulin, and vasoactive medications.
  • Operation Theatres (OT): Providing reliable, steady fluid management throughout long surgical procedures.
  • Emergency Departments (ER): Quickly deployed for immediate medication delivery where parameters must be adjusted rapidly as patient status updates.
  • NICU & Pediatric Wards: Well-suited for handling delicate, fractional small-volume dosing adjustments required for infants.

In the Box

  • ABM AB-100S Syringe Pump Main Unit
  • AC Power Cord
  • Operational User Manual
